HVFF series pneumatic fittings

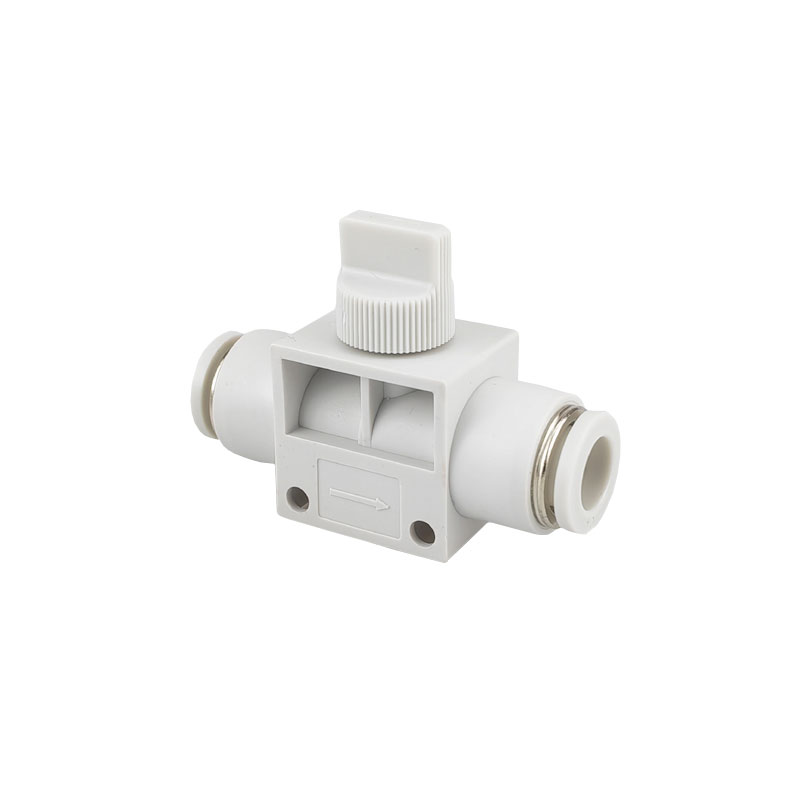

HVFF series Plastic Air Flow Regulating Male Speed Controller Hand Valve Pneumatic Fittings
Order code
Technical parameter
|
Model |
HVFF-4 |
HVFF-6 |
HVFF-8 |
HVFF-10 |
HVFF-12 |
|
|
Fluid |
Air |
|||||
|
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||
|
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||
|
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||
|
Temperature |
0℃~60℃ |
|||||
|
Applicable tube |
PU/Nylon tube |
|||||
|
Tube outer size |
4mm,6mm ,8mm,10mm,12mm |
|||||
|
Metric Type |

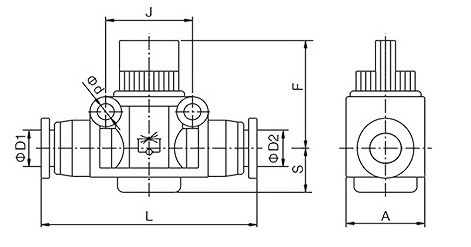

ΦD1 |
ΦD2 |
A |
L |
S |
F |
J |
G |
|
HVFF-4 |
4 |
4 |
20 |
53 |
11.5 |
30 |
22 |
4 |
|
HVFF-6 |
6 |
6 |
20 |
54 |
11.5 |
30 |
22 |
4 |
|
HVFF-8 |
8 |
8 |
20 |
55 |
11.5 |
30 |
22 |
4 |
|
HVFF-10 |
10 |
10 |
21 |
69 |
11.5 |
34 |
26 |
4 |
|
HVFF-12 |
12 |
12 |
28 |
78 |
16 |
37 |
32 |
4 |
Feature
.HVFF hand valve fitting is used for controlling on and off air pressure of pneumatic devices. This joints fittins has no function of regulating air flow.
.When the cap is turned off, the remaining air pressure in air outlet end will be automatically released via cap in order to protect the pipeline and instruments of equipment and ensure the safety of maintenance.
