PG series pneumatic fittings

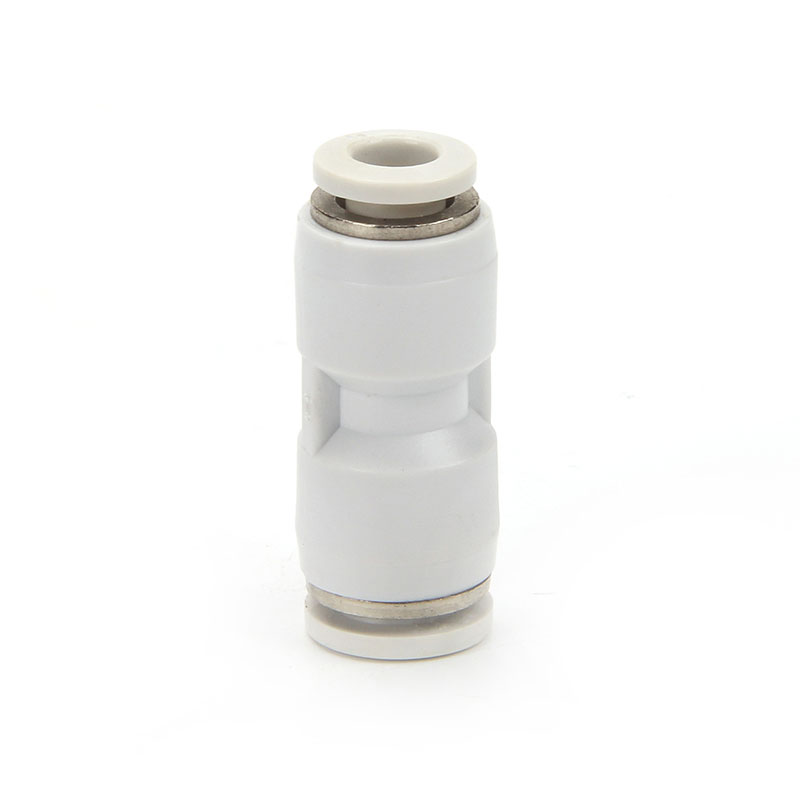

PG series plastic Push-in Fittings Straight One Touch Change Size Reducing Tube Connector
Order code
Technical parameter
Model
PG6-4
PG8-4
PG8-6
PG10-6
PG10-8
PG12-8
PG12-10
PG14-12
PG16-12
Fluid
Air
Max. Pressure
0-1.0Mpa
Temperature
0℃~60℃
Applicable tube
PU / PA / PE / PVC
Outer diameter of Tube
4mm/6mm/8mm/10mm/12mm/14mm/16mm

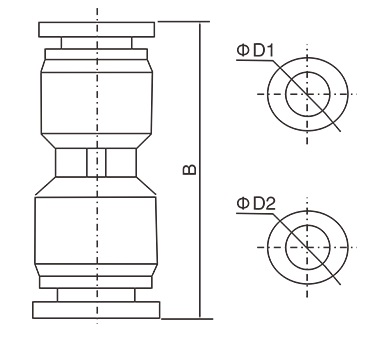

Dimension
Inch Type
Metric Type
ΦD1
ΦD2
B
PG1/4-5/32
PG6-4
6
4
35
PG5/16-5/32
PG8-4
8
4
36.5
PG5/16-1/4
PG8-6
8
6
36.5
PG3/8-1/4
PG10-6
10
6
40
PG3/8-5/16
PG10-8
10
8
40.5
PG1/2-1/4
PG12-6
12
6
43.3
PG1/2-5/16
PG12-8
12
8
44
PG1/2-3/8
PG12-10
12
10
45.5
PG14-10
14
10
45.5
PG14-12
14
12
46
PG16-12
16
12
48.5
PG16-14
16
14
67
Feature
. PG Direct One Touch Change Size Reducing Tube Connector is easy to install and remove.
. High pressure resistance and no release.
. Designed for Polyurethane or Nylon tubing.
. Made from nickel plated brass for corrosion resistance.
. Even after installation, the direction of the tube can be changed freely.
. With the hex type, its convenient to install even in the narrow place.
