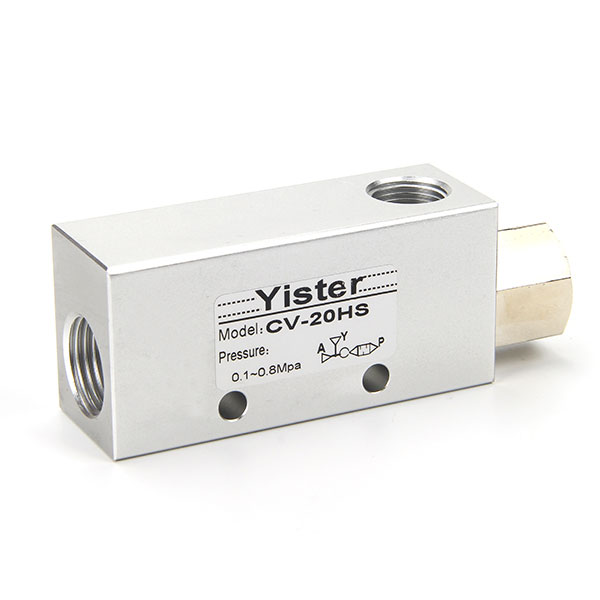

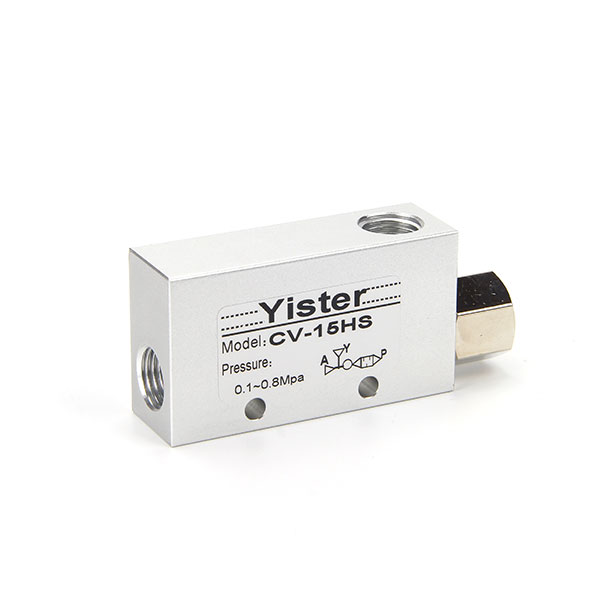

CV Series Vacuum Generator Ejector
CV Series aluminum alloy air vacuum generator pneumatic Vacuum pump Ejector
Symbol
Inner structure for vacuum generator
Technical parameter
Model No
Unit
CV-10HS
CV-15HS
CV-20HS
Fluid
No oil compressed Air
Ambient temperature
℃
0-60（no freezing）
Pressure range
MPa
0.1~0.6
Nozzle diameter
φmm
1.0
1.5
2.0
Proof pressure
MPa
0.5
Vacuum flow rate
R/min
27
63
110
Max.vacuum pressure
kPa
-0.92
Air consumption flow rate
L/min
44
100
180

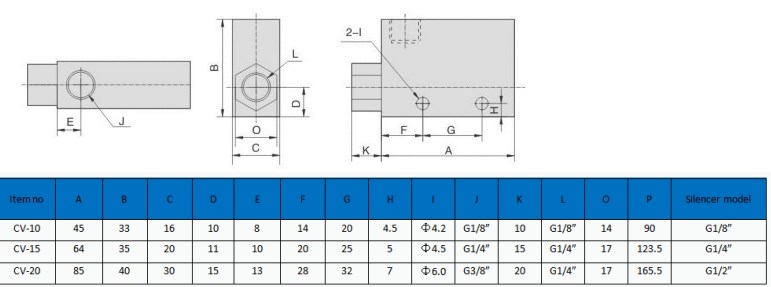

Dimension
Feature
.CV series vacuum ejector, widely used in industry field, equivalent to CONVUM.
.Aluminum body, nice look, long life.
.Port size: 1/8", 1/4", 3/8".
.Model:CV-10,CV-15,CV-20.
Simple construction without moving parts assures long lives.
.With chemical-resistant or fume-resistant materials available for the main unit, the CONVUM can be used in various environments.
.Mechanical Vacuum switch type is available
