XQ2306(Xinyi) Series Mechanical Valves
XQ230410 XQ230610 Two-way three position Xinyi type Plunger Roller lever Mechanical Control Valve

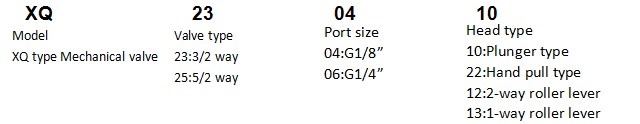

Order code

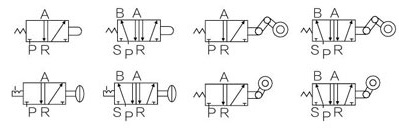

Symbol
Technical parameter
Model
Type
Port size
Nominal
dia.mm
Operating force
Operating
pressure
Fluid
temperature
Ambient
temperature
Service life
XQ230410
3/2
G1/8
4
26N
0~1.0MPa
-10~+60℃
5-60℃
10 million times
XQ230610
G1/4
6
35N
XQ250410
5/2
G1/8
4
30N
XQ250610
G1/4
6
40N
XQ230411
3/2
G1/8
4
26N
XQ230611
G1/4
6
35N
XQ250411
5/2
G1/8
4
30N
XQ250611
G1/4
6
40N
XQ230412
3/2
G1/8
4
16N
XQ230612
G1/4
6
24N
XQ250412
5/2
G1/8
4
19N
XQ250612
G1/4
6
27N
XQ230413
3/2
G1/8
4
17.8N
XQ230613
G1/4
6
20N
XQ250413
5/2
G1/8
4
21N
XQ250613
G1/4
6
23N

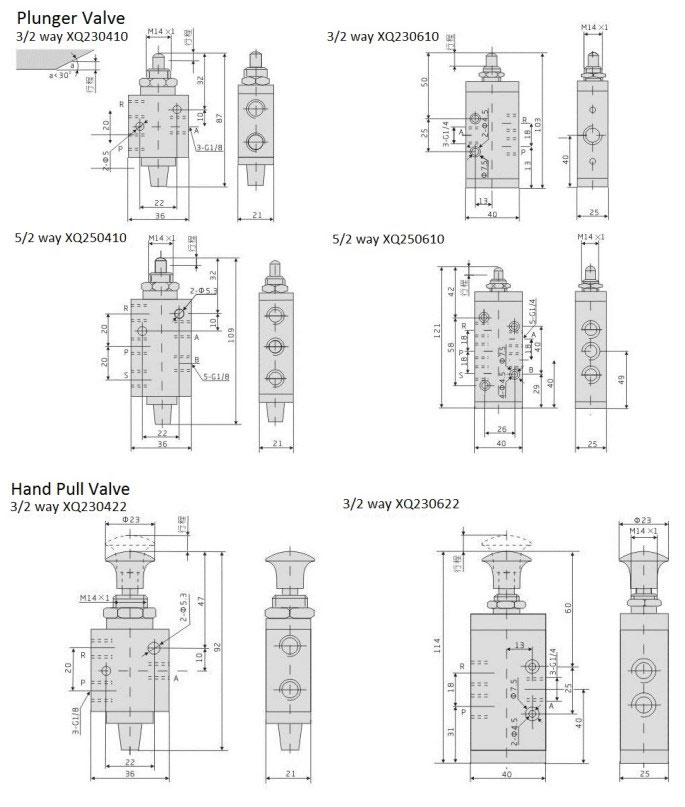

Dimension
Feature
2 position 3 way mechanical valve
Mechanical valves are reversing valves controlled by external mechanical force. When the external force disappears, the valve will reset itself and reverse the direction.
Normally used to control the output signal of pneumatic systems.
Unidirection Roller Lever mechanical valve.
