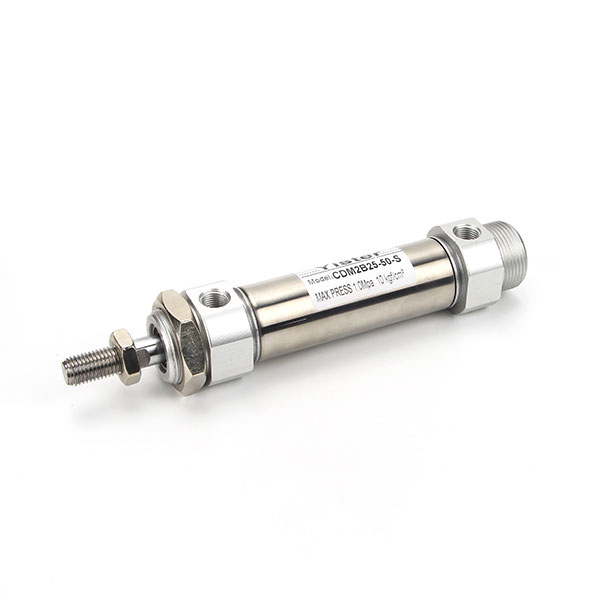

CDM2B Series Stainless steel Mini Cylinder
CM2B CDM2B double acting piston rod Stainless Steel Mini Cylinder with magnet

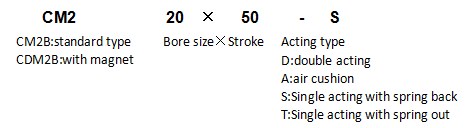

Order code
Symbol
Technical parameter
|
Bore size(mm) |
16 |
20 |
25 |
32 |
40 |
|
Acting type |
Double acting,Single acting:spring back/spring out |
||||
|
Fluid |
Air |
||||
|
Operating pressure |
0.1~0.7MPa |
||||
|
Proof pressure |
1.0MPa |
||||
|
Temperature ℃ |
-5~60 |
||||
|
Cushion type |
No cushion |
||||
|
Port size |
M5 |
1/8” |
1/4” |
||
|
Body material |
Stainless Steel |
||||
|
Bore size(mm) |
Standard stroke(mm) |
Max std stroke(mm) |
Max Stroke(mm) |
|
16 |
25 50 75 100 125 150 175 200 |
300 |
500 |
|
20 |
25 50 75 100 125 150 175 200 |
500 |
1000 |
|
25 |
25 50 75 100 125 150 175 200 250 300 |
500 |
1000 |
|
32 |
25 50 75 100 125 150 175 200 250 300 |
500 |
1000 |
|
40 |
25 50 75 100 125 150 175 200 250 300 |
500 |
1000 |

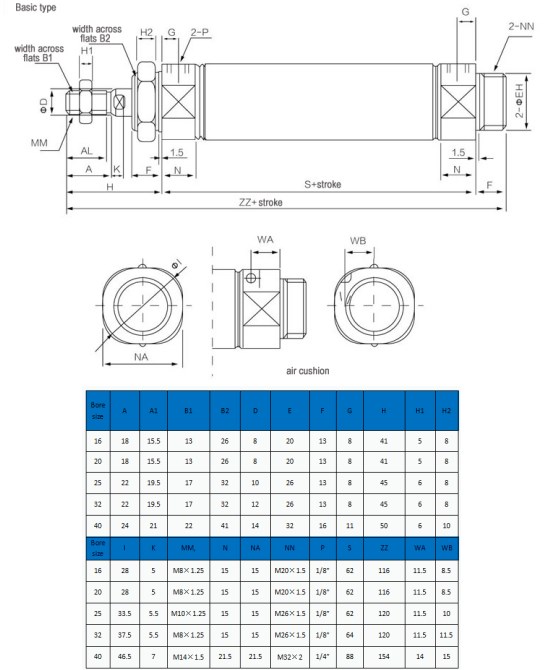

Feature
.CM2,CM2B,CDM2B Series Stainless Steel Round Body Double Acting Single Rod Mini Pneumatic Air Cylinder is female rod end as standard.
?Easy fine adjustment of auto switch position
?Single clevis and trunnion pivot brackets are available.
?Part numbers with a rod end bracket and/or pivot bracket are available.
(It is not necessary to order a bracket for the applicable cylinder separately.)
