VM130 VM131 Series Mechanical Valves
VM130 Series 2 Position 3 Way Mushroom Button Selector type Mechanical Valve

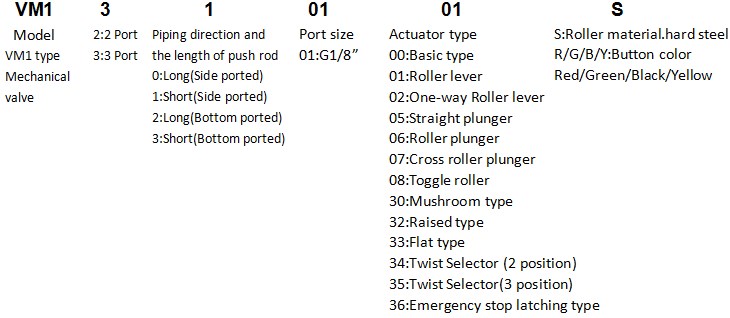

Order code

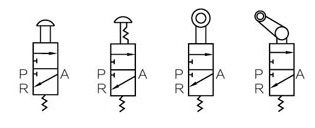

Symbol
Technical Parameter
Fluid
Air,Inert gas
Pressure range
0-1.0 Mpa
Proof pressure
1.5Mpa
temperature
-5 to 60℃
Cv value
2.5mm2
Port size
G1/8:(Side ported) M5*0.8(Bottom ported)
Lubrication
Not required

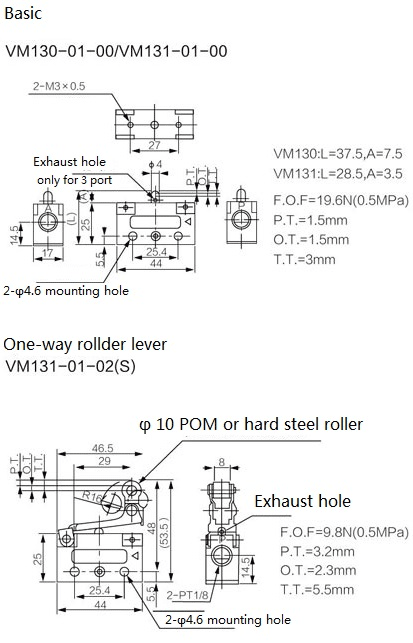

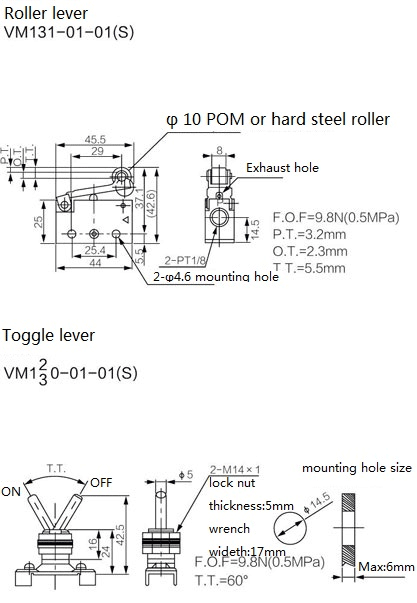

Dimension
Feature
2 position 3 way mechanical valve
Mechanical valves are reversing valves controlled by external mechanical force. When the external force disappears, the valve will reset itself and reverse the direction.
Normally used to control the output signal of pneumatic systems.
Unidirection Roller Lever mechanical valve.
