S3 Series Mechanical Valves
S3 series Red Green Yellow Black Mushroom Pushbutton Mechanical Operated Valve

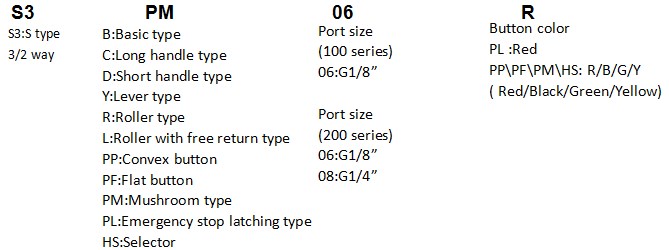

Order code

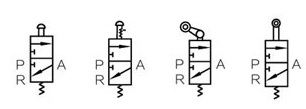

Symbol
Technical Parameter
Item No
S3B
S3C
S3D
S3V
S3R
S3L
S3Y
S3PM
S3PP
S3PF
S3PL
S3HS
Fluid
Air
Operating press range
0 to 0.8 Mpa
Ambient and fluid temperature
-20 to 70℃
Port size
1/4”
Orifice size
19.0mm2
Lubrication
Not required

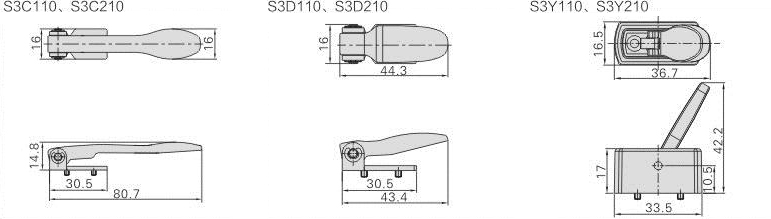

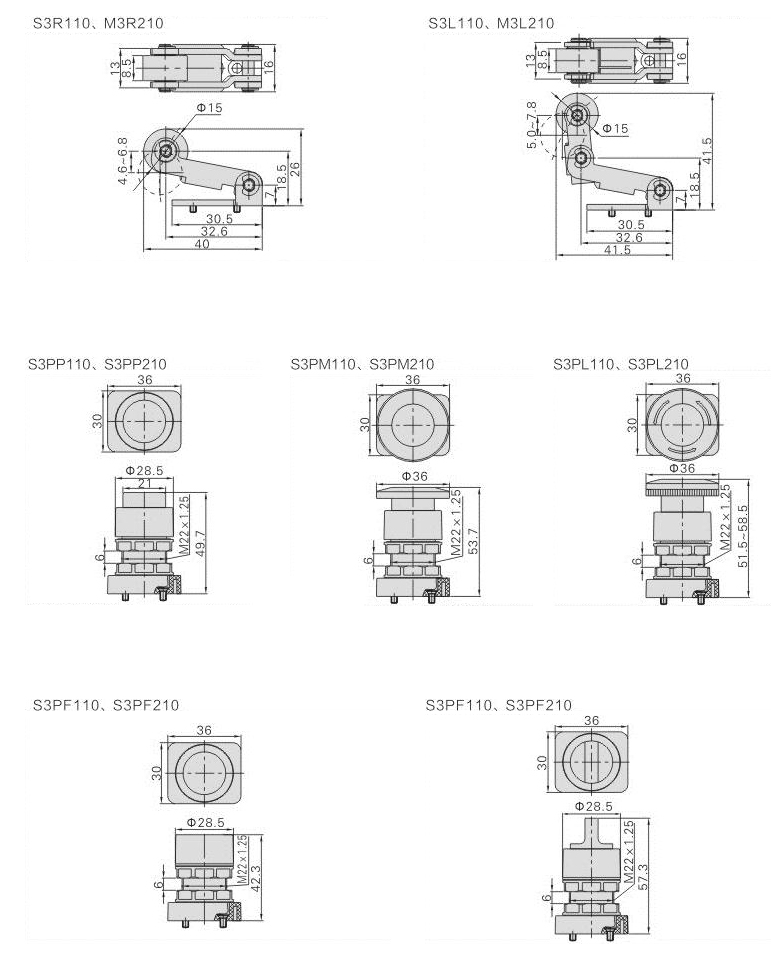

Dimension
Feature
2 position 3 way mechanical valve
Mechanical valves are reversing valves controlled by external mechanical force. When the external force disappears, the valve will reset itself and reverse the direction.
Normally used to control the output signal of pneumatic systems.
Unidirection Roller Lever mechanical valve.
