VF3130(DS3130) Soleniod Valve
24V dc VF3130 SMC type 5 Port Solenoid Valve

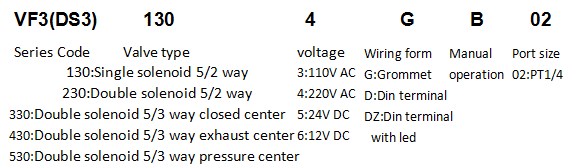

Order code

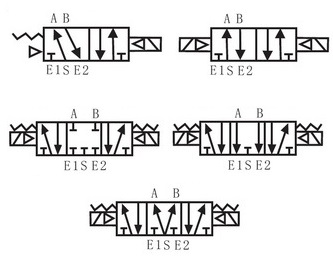

Symbol
Technical parameter
Model
VF3130(DS3130)
VF3230(DS3230)
VF3330(DS3330)
VF3430(DS3430)
VF3530(DS3530)
Fluid
Air
Acting
Internal pilot
Valve type
5/2 way
5/3 way
Orifice size
16.0mm2
16.0mm2
12.0mm2
12.0mm2
12.0mm2
Lubrication
No required
Port size
In=out=G1/4
Protective class
IP65
Pressure range
0.15-0.8MPa
Proof pressure
1.2MPa
Material of body
Aluminum Alloy
Temperature
5℃~50℃
Response speed
<0.05s

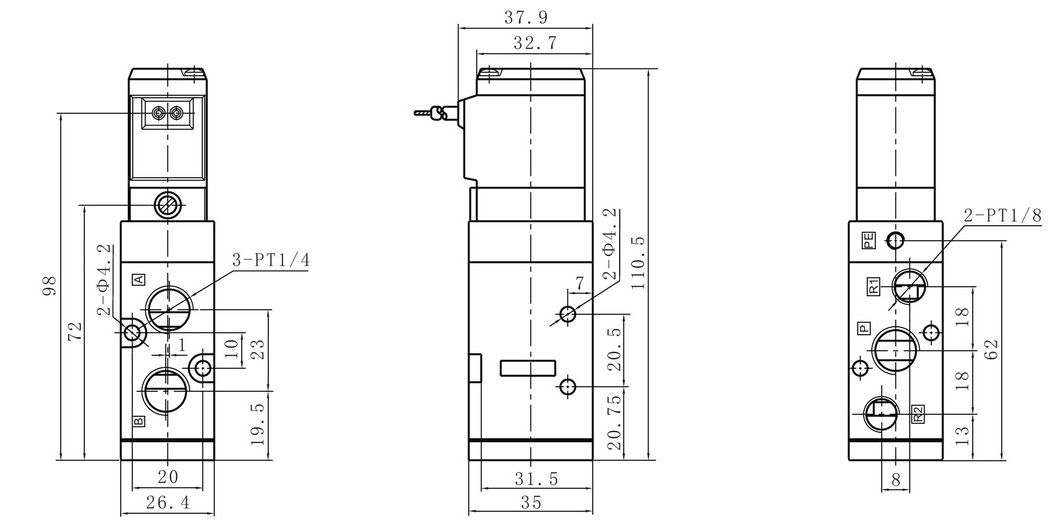

VF3130 Dimension

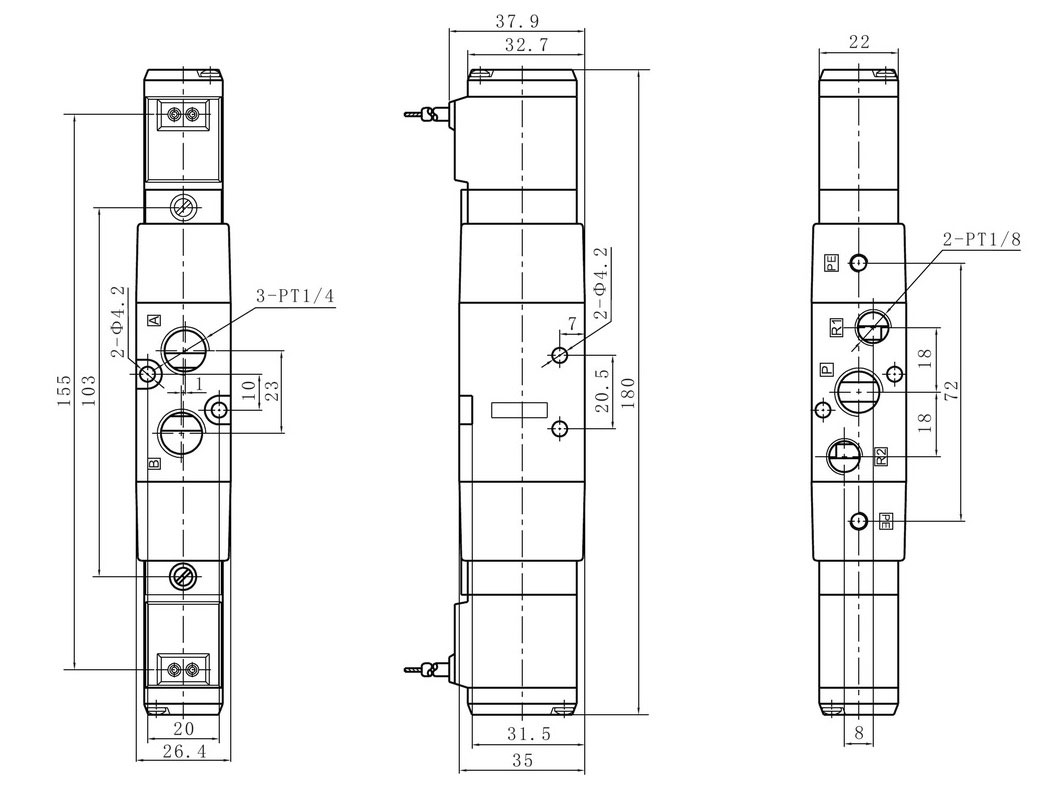

VF3230 Dimension
VF3330/VF3430/VF3530 Dimension
Feature
* VF series solenoid valve SMC Equivalent
* Single Acting and Double Acting for option
* Pilot Operated,Inner Pilot type
* Solenoid coil can be changeable type or non-changeable type selectable
* Model VF3130,VF3230,VF3330,VF3430,VF3530
* Din connector and outlead wire electricity connecting for selectable
* Metal lock Manual Override can be turnable with tool for positioning
* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity
* IP65 class Electromagnetic Induction Coil,low consumption,long service life
