4V400 Series Soleniod Valve
Internally Piloted Acting Type Single Electrical Control pneumatic valve 4V410-15

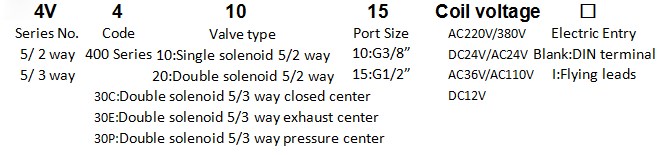

Order code

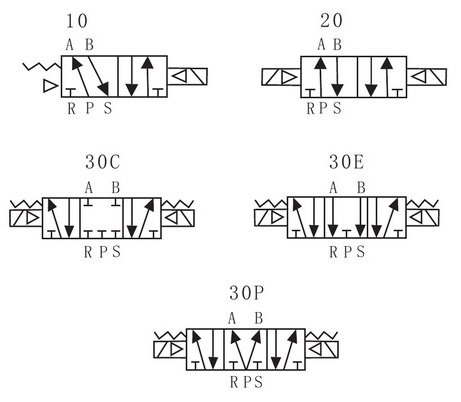

Symbol
Technical parameter
|
Model |
4V410-15 |
4V420-15 |
4V430C-15 |
4V430E-15 |
4V430P-15 |
|
Fluid |
Air |
||||
|
Acting |
Internal pilot |
||||
|
Valve type |
5/2 way |
5/3 way |
|||
|
Orifice size |
50mm2 |
30mm2 |
|||
|
Lubrication |
No required |
||||
|
Port size |
In=out=G1/2 |
||||
|
Protective class |
IP65 |
||||
|
Pressure range |
0.15-0.8MPa(21~1145Psi) |
||||
|
Proof pressure |
1.2MPa(170psi) |
||||
|
Material of body |
Aluminum Alloy |
||||
|
Temperature |
-5℃~60℃ |
||||
|
Response speed |
<0.05s |
||||

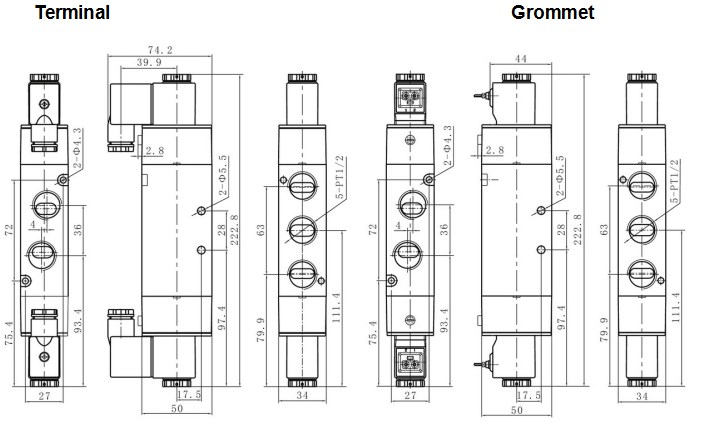

4V420 Dimension

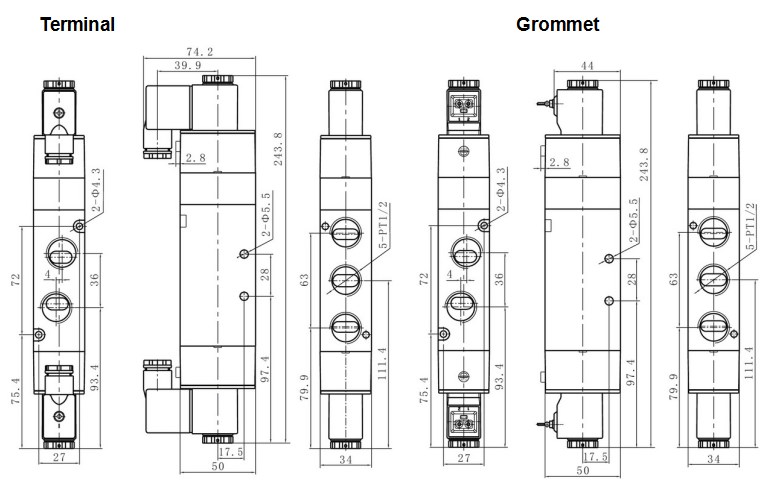

4V430 Dimension
Feature
1/2″ Inlet, Outlet and Exhaust Port. Five Way Two Positions (5/2 way) Solenoid Valve, Normally Closed with Spring Return.
Options such as lead wire connection, sub-plate mounting, metric port etc, are available.
